MV-CH250-90UM - 25MP Global Shutter USB3

MV-CH250-90UM - 25MP Global Shutter USB3

$2,859 USD
$3,150 USD $2,859 USD
Sale Sold out
Shipping calculated at checkout.

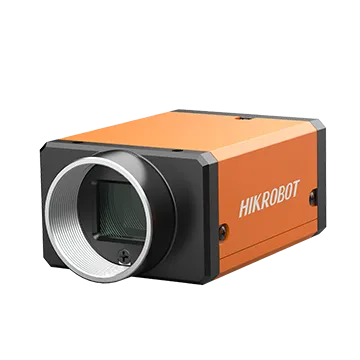

Hikrobot MV-CH250-90UM — 25MP Global Shutter USB3 Industrial Camera (Mono)

The Hikrobot MV-CH250-90UM is a high-resolution 25 MP area-scan machine vision camera built on the Gpixel GMAX0505 CMOS global-shutter sensor. Delivering up to 14 fps at full 5120 × 5120, it’s ideal for precision inspection, metrology, and robotics applications requiring low distortion, low noise, and deterministic triggering over USB 3.0.

  • 25 MP (5120 × 5120) with global shutter
  • Up to 14 fps at full resolution
  • USB 3.0 interface (USB 2.0 compatible)
  • C-mount lens interface in a compact 29 × 44 × 59 mm body
  • Hardware/Software/Free-run trigger modes
  • On-camera controls: gain, gamma, LUT; binning/decimation; image flip
  • USB bus-power support; 12–24 V DC external power option
  • USB3 Vision & GenICam compliant; works with Hikrobot MVS and third-party SDKs
  • CE / RoHS / KC certified

Technical Specifications

Model MV-CH250-90UM (Mono)
Sensor Gpixel GMAX0505, CMOS, Global Shutter
Sensor Size 1.1″
Pixel Size 2.5 µm × 2.5 µm
Resolution 25 MP — 5120 × 5120
Max Frame Rate 14 fps @ 5120 × 5120 (Mono8)
Dynamic Range ~65 dB
SNR ~36 dB
Pixel Formats Mono8 / Mono10 / Mono10p / Mono12 / Mono12p
Binning 1×1, 2×2, 4×4
Decimation 1×1, 2×2, 4×4
Exposure 12 µs to 10 s (Off / Once / Continuous)
Gain Steps 2.0×, 2.5×, 3.0×, 3.5×, 4.0×, 4.5×, 5.0×
Trigger Modes Hardware, Software, Free-run
I/O 6-pin P7: Opto-in ×1 (Line0), Opto-out ×1 (Line1), Bi-dir non-isolated I/O ×1 (Line2)
Interface USB 3.0 (compatible with USB 2.0)
Power USB 3.0 bus power or 12–24 V DC
Typical Power ~3.6 W @ 5 V (USB3 bus power)
Lens Mount C-mount
Ingress Protection IP30 (with proper lens & cabling)
Operating Temp −10 °C to 50 °C
Storage Temp −30 °C to 70 °C
Humidity 20%–95% RH, non-condensing
Dimensions 29 mm × 44 mm × 59 mm
Weight Approx. 100 g
OS Support Windows (32/64-bit), Linux (32/64-bit), macOS (64-bit)
Software Hikrobot MVS or third-party (USB3 Vision / GenICam)
Certifications CE, RoHS, KC

Typical Applications

  • Electronics & PCB inspection, metrology & measurement
  • Machine vision guidance & robotics
  • Surface & defect detection, OCR/OCV

What’s in the Box

  • MV-CH250-90UM Camera
  • Documentation & Quick Start (downloads available)
  • Lens, cable, and power supply sold separately

Downloads

  • Hikrobot MVS SDK & Drivers (USB3 Vision / GenICam)
  • Datasheet & Mechanical Drawings

Specification

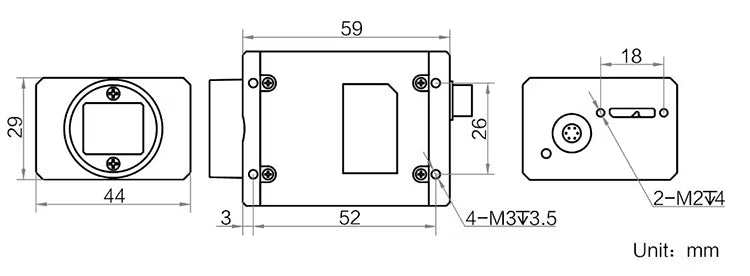

Dimensions

Embedded Mounting

VESA Mounting
